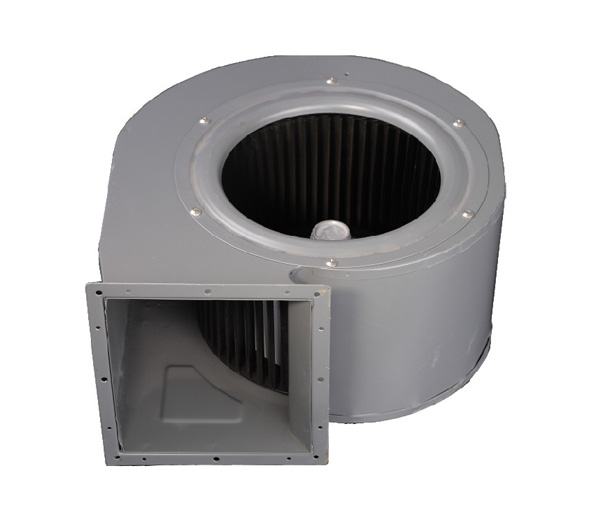

3987 single suction fan
Model：FJ-240*131(3987)
Category：Range Hood Fan
Number：
Product introduction
Motor: 110W-4P
Voltage: 220V rated
rated current: 0.94A
Frequency: 50HZ
fan gross weight: 6.42Kg
The air ≥ 17 m3/min
Pressure ≥ 290 Pa
Power ≥ 220 W
The noise ≤ 65 dB
Speed ≥ 1300 r/min
Straight suction suction design, product high pressure, low noise, low power consumption, compact structur
風機結構圖 Fan Chart
性能曲線 Blower performance graph
風機性能參數表 Blower performance parmeter table
| 風量 | 全壓 | 靜壓 | 電流 | 輸入功率 | 聲壓級 | 轉速 |
| m3/h | Pa | Pa | A | w | dB(A) | r/min |
| 527 | 289 | 271 | 0.66 | 149.7 | 65.1 | 1300 |
| 668 | 281 | 253 | 0.75 | 168.0 | 63.2 | 1242 |
| 843 | 252 | 2.6 | 0.83 | 186.7 | 62.4 | 1158 |
| 968 | 213 | 153 | 0.91 | 205.5 | 63.0 | 1364 |
| 1043 | 174 | 105 | 0.98 | 221.0 | 62.3 | 952 |
